Impinj R2000 Chip RFID Fixed Reader High Performance

ShenZhen ZKHY RFID Technology Co., Ltd.
Contact Now

Impinj R2000 Chip RFID Fixed Reader High Performance

  • 1
  • 2
  • 3

Brand Name : ZKHY

Model Number : ZK-RFID406

Certification : CE Rohs FCC

Place of Origin : China (mainland)

MOQ : 1

Payment Terms : Western Union, T/T,Paypal

Supply Ability : 1000pcs per month

Delivery Time : 5-8days

Packaging Details : Carton packing

Interface : RS232, RS485, wiegand 26/34 (TCP/IP,Wifi can be customized)

Material : Metal

Working Frequency : 860-928Mhz

Application : Parking system,library management ,warehouse management

Protocol : ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)

Chip : Impinj R2000

Contact Now

High Performance Impinj R2000 Chip 4 port Fixed UHF RFID Reader for Sport Timing System









ZK_RFID406 fixed reader  is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems





Specification:



Working frequency 865~868MH, 902~928Mhz(can be Customized)
Chip Impinj R2000
Interfaces RS232/RS485, USB(Slave), GPIO,RJ45 with WiFi and POE optional
Output Port 4 TNC Antenna Port with antenna atuo-tuning and failure-detection
RF output power 0~30dBi(Adjustable)
Transmission mode FHSS or Fix Frequency transmission
Working mode Auto-running, answer,trigger-activating and real-time-inventory
Read Range Depends on antenna gain
Write Range Depends on antenna gain
Power Supply DC+9V
Signal Buzzer and LED
Storage temperature -10- +55℃
Operating temperature -20 +75℃
Item Size 310*210*41mm
N.W 1880g
G.W 2850g





FEATURES:


  Self-intellectual property;
  Designed with Impinj R2000 RFID engine;
  Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
  860~868MHz/902~928MHz frequency band(frequency customization optional);
  FHSS or Fix Frequency transmission;
  RF output power up to 30dbm(adjustable);
  4 TNC antenna port with antenna auto-tuning and failure-detection;
  Support auto-running, answer, trigger and real-time-inventory work mode;
  Tag buffer size up to 800PCS (Max. 496bits EPC length);
  Support EPC and TID inventory;
  Low power dissipation with single +9 DC power supply;
  Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
  High reliability design;
  Support on-the-site firmware upgrading and optional Wince or Linux Operation System.




CHARACTERISTICS
  Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp. TOPR -10~+60 ℃
Storage Temp. TSTR -20~+75 ℃


  Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC 8 9 12 V
Current Dissipation IC 800 1500 mA
Frequency FREQ 902 902~928 928 MHz
Size Size 310×210×41 mm


MECHANICAL DATA(UNIT mm):

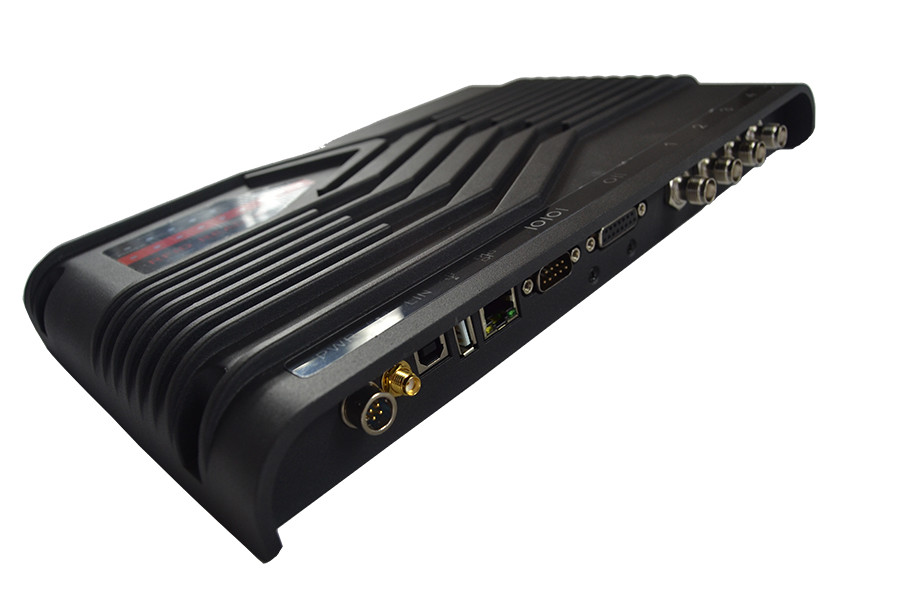

INTERFACE

1.  Power J1
No. Symbol Comment
2  PWR +9VDC
4  GND Ground
1 , 3  NC Reserved
2. WiFi Antenna J 2 (SMA Female)
3 .   USB J3 (Slave)
4.   USB J4 (Reserved)
5.  TCPIP RJ45 Socket J5
6.  UART J6 (RS232 DB9 Female)
No.  Symbol Comment
1  NC Reserved
2  TXD Data output in RS232
3  RXD Data input in RS232
4  NC Reserved
5  GND Ground
6  NC Reserved
7  NC Reserved
8  NC Reserved
9  NC Reserved

7.  GPIO J7 (DB15 Female)
No.  Symbol Comment
1  Output1 General output1
2  Output2 General output2
3  Output3 General output3
4  Output4 General output4
5  Input1 General Intput1 with Internal 47k resistor pulled-down to ground
6  Input2 General Intput2 with Internal 47k resistor pulled-down to ground
7  Input3 General Intput3 with Internal 47k resistor pulled-down to ground
8  Input4 General Intput4 with Internal 47k resistor pulled-down to ground
9  TGIN Trigger input with internal 10k resistor pulled-up to +5V
10   R+ R+ in RS485
11 R- R- in RS485
12  GND Ground
13  NC Normal-Close terminal of internal relay
14  NO Normal-Open terminal of internal relay
15  CM Common terminal of internal relay

8. TNC Antenna Port1~Port4 J8~J11



9. LED indicator
Symbol Comment
POWER Power on indicator
RUN Command-executing indicator
TAG Tag-detected indicator
WIRELESS WiFi active indicator
ALARM Alarm indicator
1~9 RSSI indicator


Remark:
1. Specifications are subject to change, please pay attention to our latest version.P
