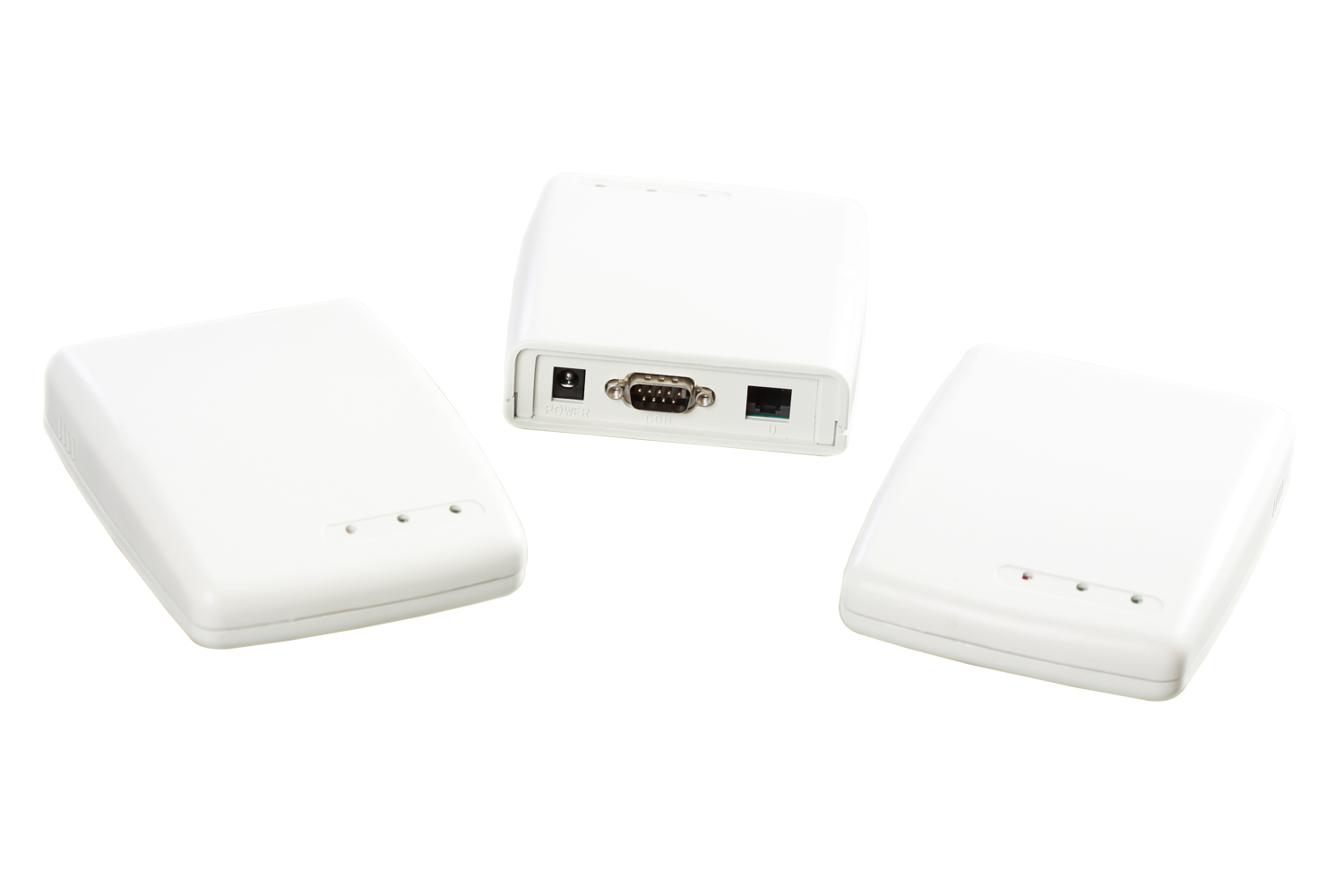

Marathon timing system USB mini desktop uhf rfid reader / writer uhf rfid reader module
ZK-RFID106 USB mini desktop uhf rfid reader / writer uhf rfid reader module for marathon timing system is a high performance Multiple Protocol UHF RFID Reader. , it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system.
Specification:
| Name | Parameters |
| Working Temperature | -10~+60℃ |
| Power supply | 9V |
| Storage Temperature | -25~+80℃ |
| Working Frequency | 902-928Mhz |
| Support Protocol | EPC Gen 2 (ISO18000-6C) ISO18000-6B |
| Size | 123*94*29mm |
| Net weight | 154g |
| Communication Interface | RS232,Wiegand26/34 |
| Antenna Gain | 2dBi |
| Effective Reading distance | ˃30cm |
| Typ Power Dissipation | 1.35W |
| Interface Communication Rate | 115200bps can be customized |
| Buzzer | Yes |
| LED | Red(power indicator)Green(status indicator) |
| Enclosure | Plastic |
FEATURES
l Self-intellectual property;
l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l Built-in wideband antenna with effect distance up to 500mm*;
l Support auto-running and interactive work mode;
l Low power dissipation with single +9V DC power supply;
l SupportRS232 and Wiegand interface;
l Output format and parameters configurable;
l Provide SDK and demo software to facilitate further development.
INTERFACE
| DB9 Male |
| Pin | Symbol | Comment |
| 1 | NC | Reserved |
| 2 | TXD | TXD of RS232 |
| 3 | RXD | RXD of RS232 |
| 4 | NC | Reserved |
| 5 | GND | GND |
| 6 | WD0 | Wiegand data0 |
| 7 | NC | Reserved |
| 8 | WD1 | Wiegand data1 |
| 9 | GND | GND |
CHARACTERISTICS
l Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 15 | V |
| Operating Temp. | TOPR | -10~+60 | ℃ |
| Storage Temp. | TSTR | -25~+80 | ℃ |
l Electrical and Mechanical Specification
Under TA＝25℃,VCC＝+9V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 6 | 9 | 12 | V |
| Current Dissipation | IC | | 400 | 700 | mA |
| Frequency | FREQ | 902 | | 928 | MHz |
| Effective Distance* | Dis | 0 | 100 | 500 | mm |
* Effective distance depends on protocol, tag and environment.
Application :
ZK-RFID 101 is high perfomance UHF desktopreader.It can wide use in Jewelry store management ,access control system.It can easily white the card .
